How to Measure a Pool

Replacing a pool liner or installing a custom safety cover requires exacting precision. A swimming pool is a massive, highly specific geometric structure, and even slight deviations in your measurements can lead to disastrous consequences during installation.

A cover must anchor securely to protect the pool, while a liner must fit snugly against the walls and floor without wrinkling or tearing under the immense weight of the water. This comprehensive guide on how to measure a pool will walk you through the exact process of measuring a pool, ensuring your replacement fits flawlessly.

We will cover the specific tools you need, the exact methodology for mapping out the pool’s dimensions, and the common pitfalls you must avoid.

Tools Needed

Before you step outside to begin the measuring process, you need to gather the correct tools. Using improvised equipment will compromise your data.

• Two 100-foot fiberglass measuring tapes
• Chalk or masking tape
• Two stakes or pegs
• A notepad and measurement forms
• A rigid telescopic pool pole
• A level and a plumb bob
• A helper

10 Easy Steps on How to Measure a Pool

Step 1: Preparation and Documentation

Before taking a single measurement, you must prepare the site and your documentation. Clear the pool deck of all furniture, planters, and debris, so you have an unobstructed walking path around the entire perimeter. If you are using a manufacturer-provided measurement sheet, review it thoroughly to understand the specific data they require. Sketch a rough outline of your pool shape on a blank piece of paper. This sketch does not need to be perfectly to scale, but it must accurately reflect the general shape, the location of the steps, the deep end, the shallow end, and any additional features like spas or swim-outs. Note the type of corners your pool has—whether they are square, diagonal, or radius (rounded) corners. Identify the bead receiver type if you are measuring for a liner. Proper preparation prevents confusion once you start calling out numbers.

Step 2: Establishing A and B Points

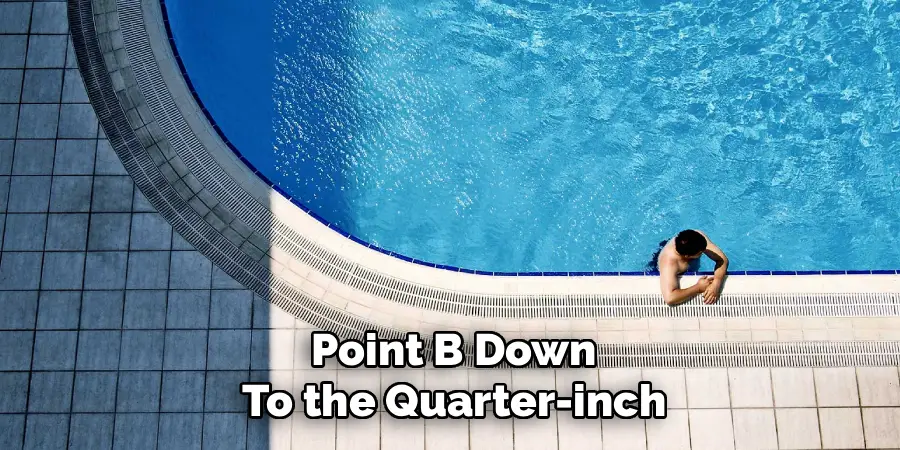

For any pool that is not a perfect rectangle, you must use the A-B triangulation method. This mathematical approach allows manufacturers to map complex curves. First, establish two anchor points, labeled A and B, on the pool deck. These points must be placed approximately three to four feet away from the water’s edge, entirely outside the pool perimeter. The distance between Point A and Point B must be at least two-thirds the length of the pool. For example, if your pool is 30 feet long, your A and B points should be exactly 20 feet apart. Drive stakes into the grass or use heavy objects to mark these points on a concrete deck. Measure the exact distance between Point A and Point B down to the quarter-inch and record this number immediately. This baseline is the foundation for all subsequent mathematical plotting.

Step 3: Marking the Perimeter

With your A and B points established, you must now mark the entire perimeter of the pool. Starting at a distinct location, such as the edge of the entry steps, use chalk or masking tape to mark points along the pool’s edge. Number these points sequentially (1, 2, 3, etc.) clockwise around the pool. For straight walls, place a mark every two to three feet. For tight curves or sharp radius corners, place a mark every one foot to accurately capture the sweep of the arc. Ensure these marks are placed on the exact inside edge of the pool wall, not on the outer edge of the coping stone. If your pool has an irregular feature like a rock waterfall or a sheer descent, place additional, closely spaced points around the base of that specific feature to map it thoroughly.

Step 4: Measuring from Point A

Now you will begin the triangulation process, starting with Point A. Have your helper hold the zero-end of the 100-foot fiberglass measuring tape firmly at Point A. Walk around the pool to Point 1 on your marked perimeter. Pull the tape tight, ensuring it forms a straight, unobstructed line between Point A and Point 1. Read the measurement down to the nearest quarter-inch and record it on your chart under the “A” column for Point 1. Move to Point 2, pull the tape tight, and record the measurement. Continue this process sequentially around the entire pool until you have measured the distance from Point A to every single numbered mark on the perimeter. Keep the tape taut for every measurement to eliminate sagging, which artificially inflates the distance.

Step 5: Measuring from Point B

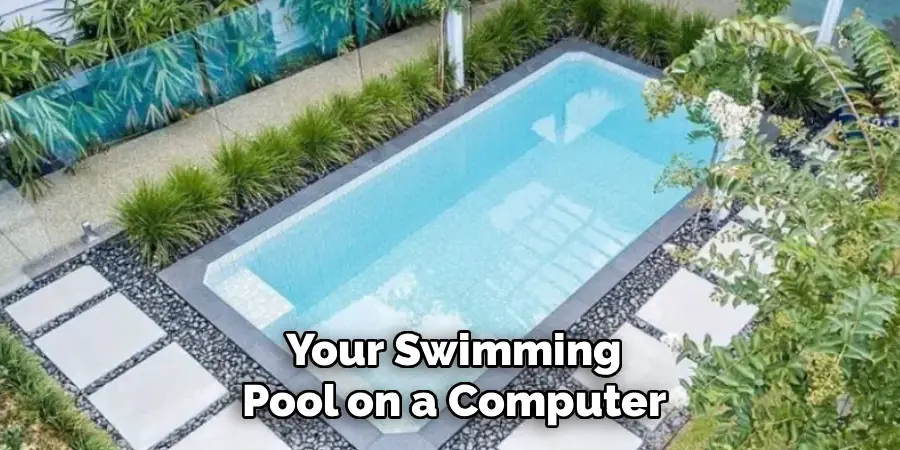

Once you have completed all measurements from Point A, you must repeat the same process from Point B. Have your helper move and anchor the zero-end of the measuring tape firmly at Point B. Walk around the pool again, starting back at Point 1. Pull the tape completely tight and record the exact distance from Point B to Point 1 in the “B” column on your chart. Continue to Point 2, Point 3, and so on, until you have mapped the distance from Point B to every numbered point on the perimeter. Because you already recorded the distance between A and B, these two sets of measurements create a series of overlapping triangles. The manufacturer’s software uses these triangles to recreate the precise outline of your swimming pool on a computer.

Step 6: Recording Overall Dimensions

Even with comprehensive A-B triangulation, you must take overall straight-line measurements to serve as cross-reference points. Measure the total overall length of the pool down the exact center line. If the pool has a hopper (a deep-end diving well), measure the length and width of the hopper specifically. Next, measure the overall width of the pool at multiple critical locations: the widest point of the shallow end, the exact middle of the pool, and the widest point of the deep end. Measure the length of all straight wall segments. These overall dimensions act as a safety net. When the manufacturer enters your A-B data into their CAD program, they will check the resulting overall length and width against these straight-line measurements to verify that the plotting is perfectly accurate.

Step 7: Mapping the Shallow End

Measuring the depth and transitions is just as critical as the perimeter, especially for a pool liner. Start by determining the depth of the shallow end. Do not measure from the deck down to the floor. Instead, measure from the track where the liner beads snap in (or from the bottom of the coping if it is an overlap liner) down to the pool floor. Find the exact point where the flat shallow end stops and the floor begins to slope downward toward the deep end. This is known as the “breakline.” Measure the distance from the shallow end wall to this breakline. If your pool is full of water, you can locate the breakline by running a telescopic pool pole along the bottom until you feel the floor begin to drop off, then mark that spot on the deck.

Step 8: Charting the Deep End and Hopper

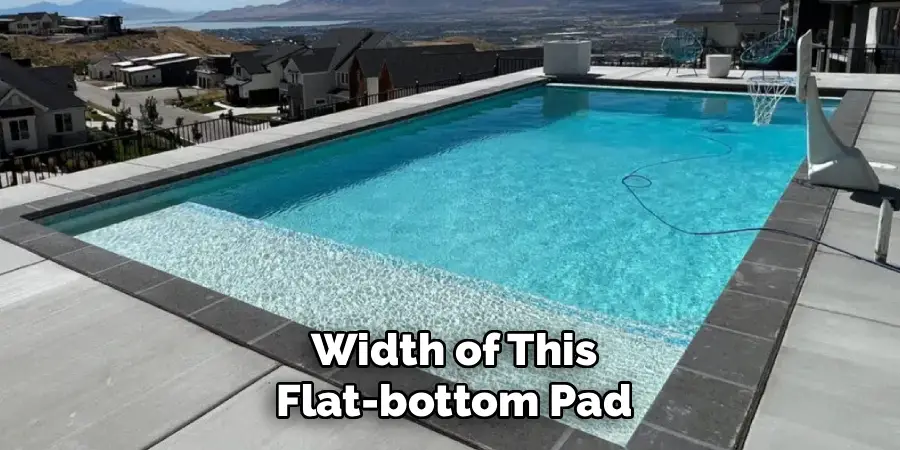

The deep end consists of several different slopes that must be measured carefully. Locate the flat pad at the very bottom of the deep-end hopper. You need to measure the length and width of this flat-bottom pad. Next, measure the exact depth of the deep end from the liner bead track down to the flat pad. To do this accurately with water in the pool, extend your pole to the bottom, mark the waterline on the pole, then pull the pole out and measure from the mark to the bottom of the pole. Finally, measure the side slopes, back slope, and the main front slope extending from the shallow end breakline down to the deep end pad. These slope dimensions must add up precisely to match the overall length and width of the pool.

Step 9: Measuring Steps, Benches, and Features

Internal features like vinyl-covered steps, tanning ledges, or seating benches require highly granular measurements. For entry steps, measure the exact width of the staircase assembly. Measure the riser height (the vertical drop) of every single step, and the tread depth (the horizontal depth) of every single step. Ensure that the total height of all the risers adds up exactly to the total shallow end depth of the pool. If your pool features a tanning ledge, measure the length, width, and exact depth from the bead track to the ledge floor. For deep-end swim-outs or seating benches, take the same meticulous measurements of the risers, treads, and overall widths. A custom liner must be cut specifically to wrap around these features without tearing.

Step 10: Final Verification and Cross-Checking

The final step is to sit down and review all your data before submitting it. Check your math to ensure the segments add up. For example, the shallow end length, plus the slope length, plus the hopper bottom length, plus the back slope length, must equal the overall length of the pool. If there is a discrepancy of more than an inch or two, you must go back and remeasure the depths and slopes. Review your A-B perimeter points to ensure you did not skip any numbers or write down a measurement in the wrong column. Check your initial A to B baseline distance one more time. Taking an extra twenty minutes to verify your figures can save you weeks of delays and thousands of dollars in replacement costs.

Frequently Asked Questions

• Can I Measure My Pool While It Is Full of Water?
  Yes, you can easily take accurate measurements while the pool contains water. You will use a rigid telescopic pole to feel for breaklines and transition points along the floor. By marking the pole at the waterline and bringing it out to measure, you avoid needing to drain the basin. Just ensure you account for the distance from the waterline up to the actual coping or bead track. Most professionals actually prefer measuring with water in the pool to maintain structural integrity.
• How Often Do I Need to Remeasure My Pool?
  You only need to take fresh measurements when you are ordering a completely new, custom-fitted product. If you previously ordered a liner from a specific manufacturer and it fit perfectly, they will likely have your exact CAD file saved in their system. However, if you switch manufacturers or order a different product like a safety cover, you must measure the pool again. Pool walls can slightly shift over the decades, so fresh data is always the safest bet.
• What if My Pool Has a Complex Freeform Shape?
  Complex freeform shapes simply require more data points during the A-B triangulation process. Instead of placing a chalk mark every three feet, you will place marks every single foot along tight curves. The underlying math remains the same regardless of how complex the pool shape happens to be. As long as you maintain a taut tape and record the distances meticulously, the manufacturer’s software will map the curves flawlessly. Just ensure your A and B anchor points are positioned clearly away from the widest parts of the curve.

Conclusion

How to measure a pool for a replacement liner or safety cover is an exacting process that demands patience and attention to detail.

By carefully establishing your baseline points, mapping the perimeter through A-B triangulation, and capturing the specific depths and transitions of the basin, you provide the manufacturer with the precise data needed to create a flawless product.

Always remember to use the correct tools, avoid making assumptions about standard dimensions, and cross-check your mathematical calculations before finalizing your order. A perfectly fitted liner or cover will enhance the safety, beauty, and longevity of your pool for years to come.
